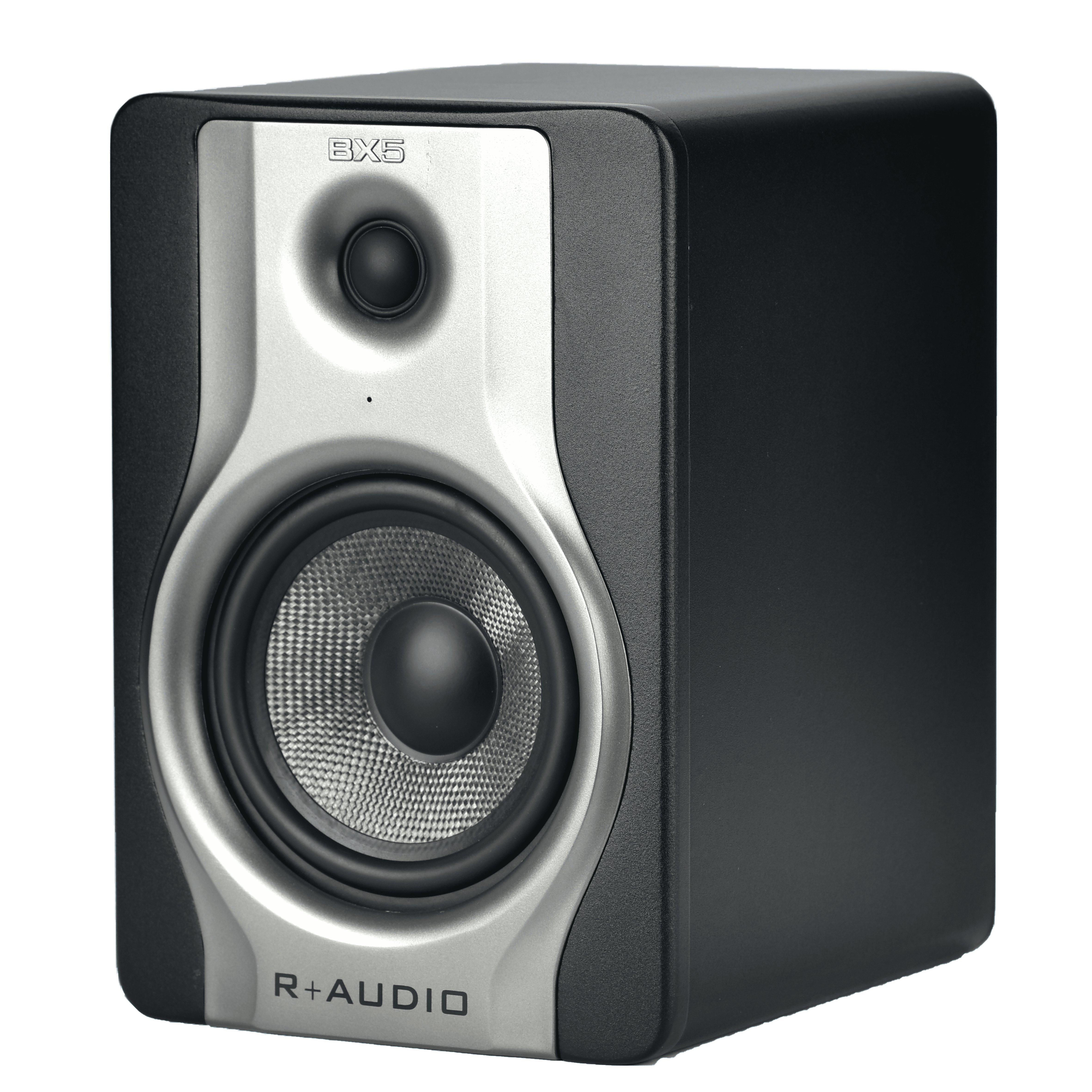

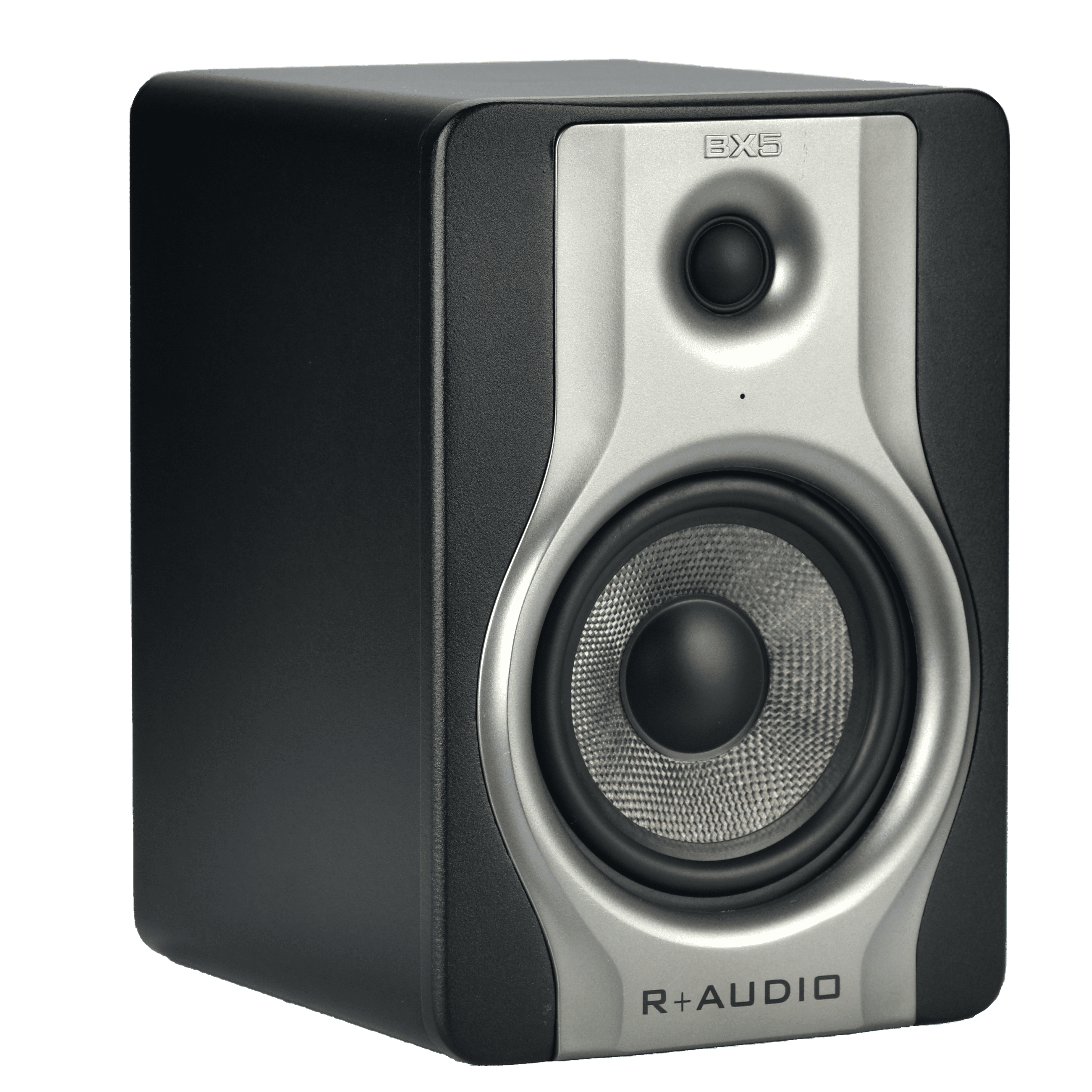

BX5
Key Features
- Bi-amplified design with 100 watts (60 LF, 40 HF) for powerful, accurate sound
- 5” Kevlar low-frequency driver with high-temp voice coil and damped rubber surround
- 1” natural silk dome tweeter delivers superb transient details
- New computer-optimized tweeter waveguide for precise imaging
- Acoustic Space Control to fine-tune low-end response to your room
- Optimized rear port for extended low-frequency response
- XLR balanced and 1/4” balanced/unbalanced inputs for connecting audio interfaces, mixers, synthesizers, DJ gear, and more
- Volume control enables you to dial in the perfect monitor playback level
- Ultra-wide range 35-20KHz frequency response covers full musical spectrum
- Front panel LED shines brightly when speaker is positioned at ideal monitor angle
Description
TYPE
2-way near-field studio reference monitors
LOW FREQ. DRIVER
5 inch (127mm) Kevlar curved cone with high temperature voice coil and damped rubber surround. Magnetically shielded
HIGH FREQ. DRIVER
1 inch (25mm) magnetically shielded natural silk dome
FREQUENCY RESPONSE
35 Hz – 20 kHz
CROSSOVER FREQUENCY
2.5kHz
LOW FREQ. AMPLIFIER POWER
60W
HIGH FREQ. AMPLIFIER POWER
40W
BI-AMP AMPLIFIER POWER
100W (60W+40W)
MAXIMUM PEAK SPL
115 dB SPL – Full Bandwidth Pink Noise Measured
INPUT SENSITIVITY
-10dBU

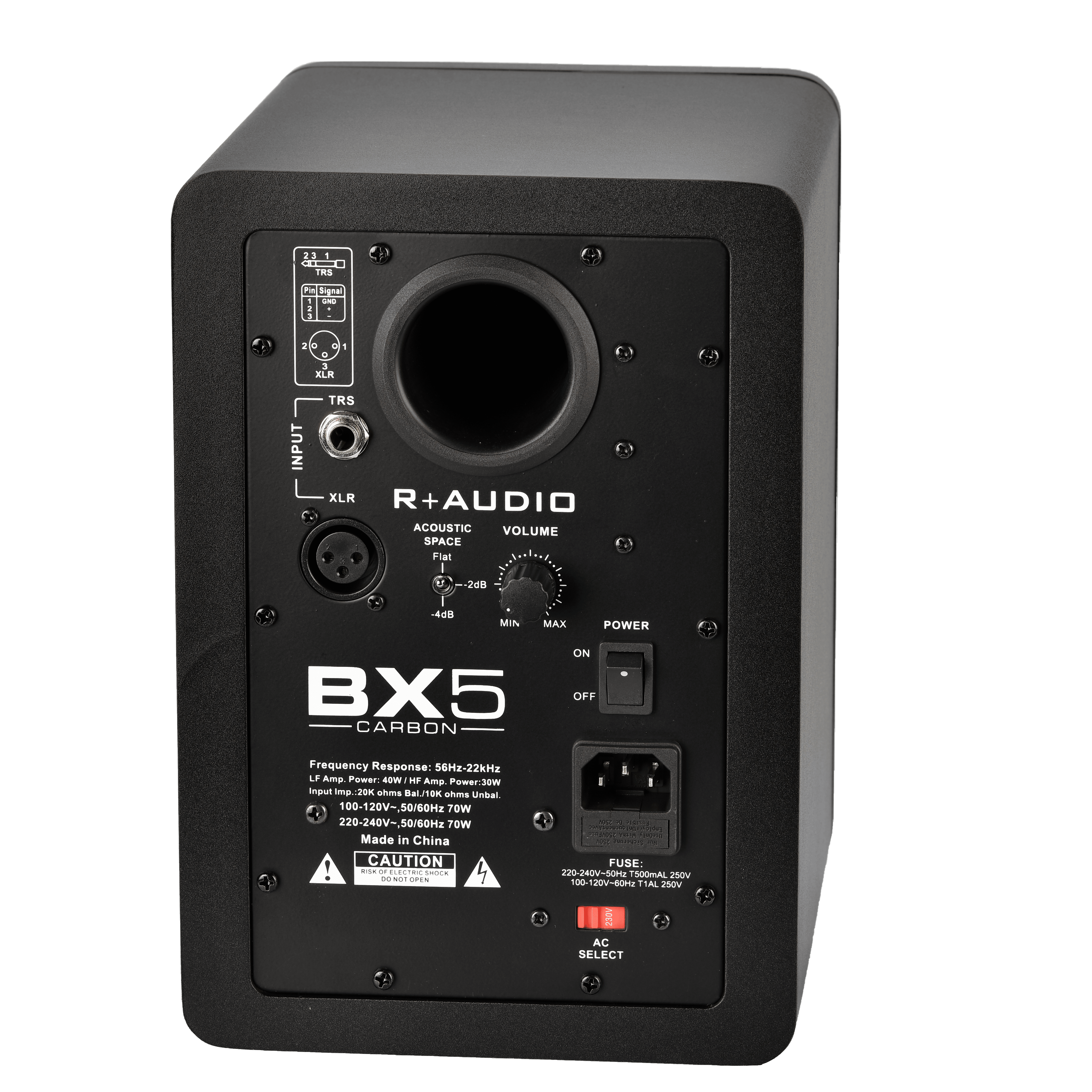

INPUT CONNECTORS
1x XLR balanced input connector 1x TRS balanced/unbalanced input connector
INPUT IMPEDANCE
10kΩ balanced, 20kΩ unbalanced
POLARITY
Positive signal at + input produce outward LF cone displacement
PROTECTION
RF interference, output current limiting, over temperature, turn on/off transient, subsonic filter, external mains fuse
POWER
Voltage: 100–120V, 50/60 Hz / 220–240V, 50/60 Hz Consumption: 100W
FUSE
220–240V~ T1AL 250V / 100–120V~ T1.6AL 250V
CABINET
Vinyl-laminated high-acoustic-efficiency MDF
DIMENSIONS(WIDTH X DEPTH X HEIGHT)
6.9” x 7.8” x 10” / 176 x 197 x 254 mm
WEIGHT
12.3 lbs, 5.6kg
